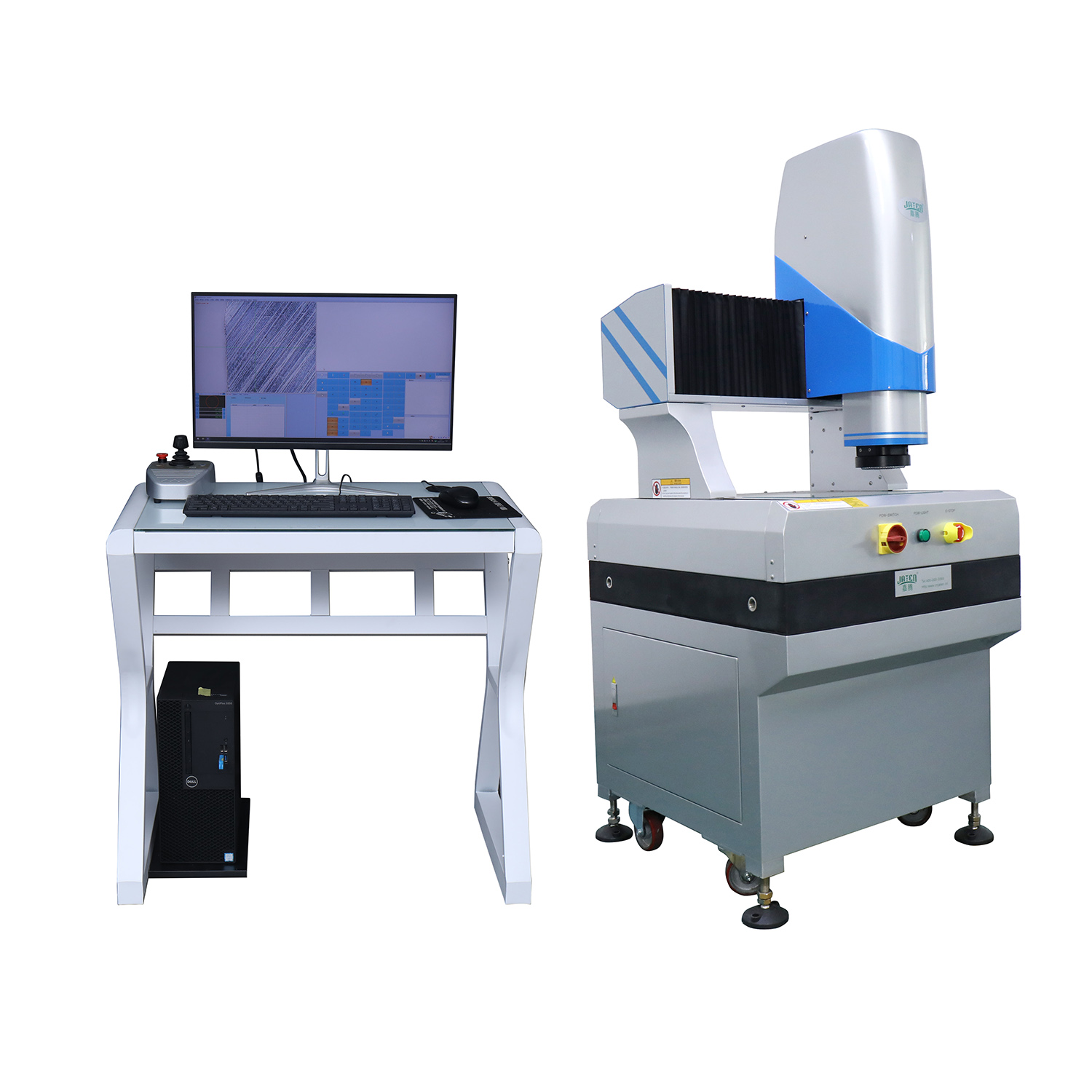

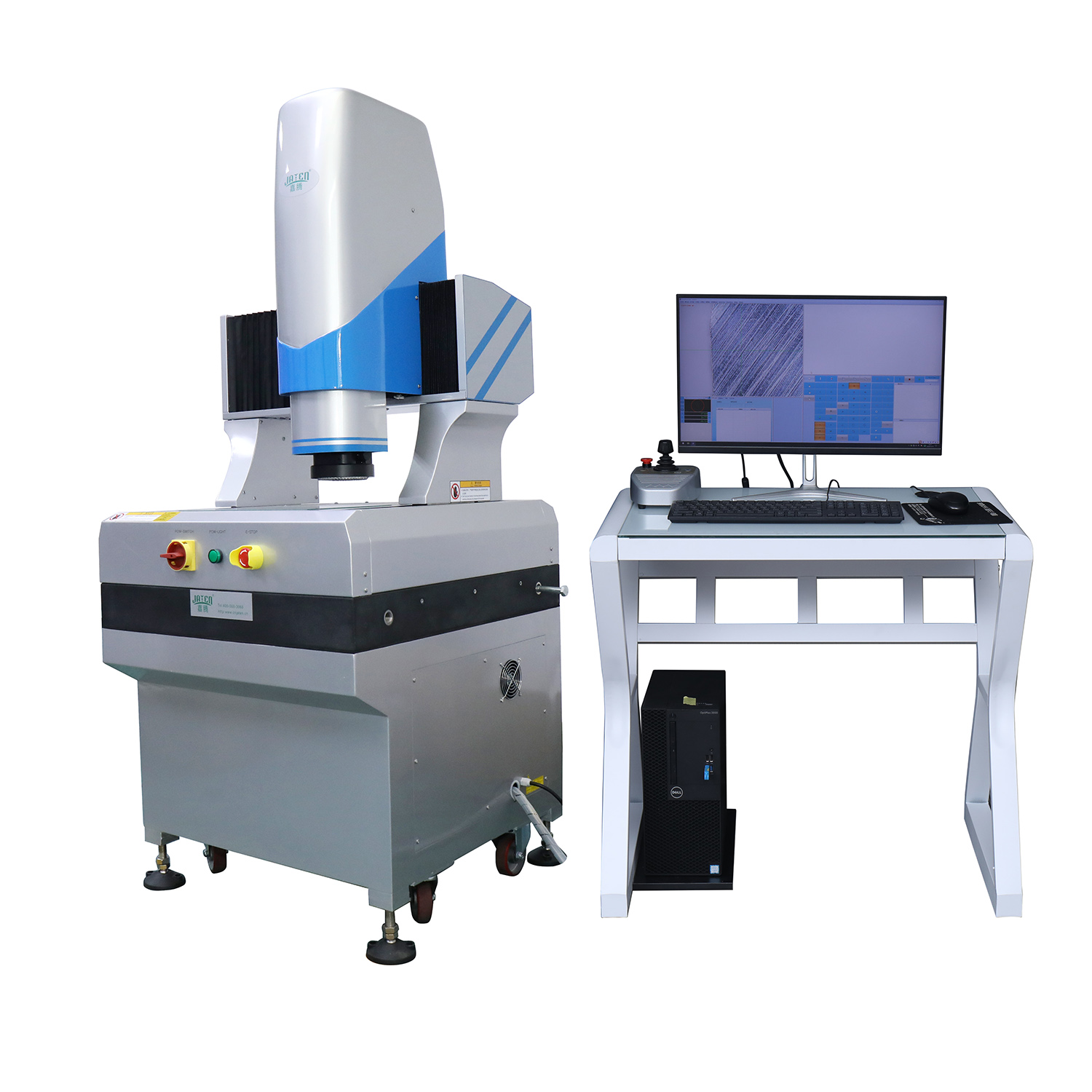

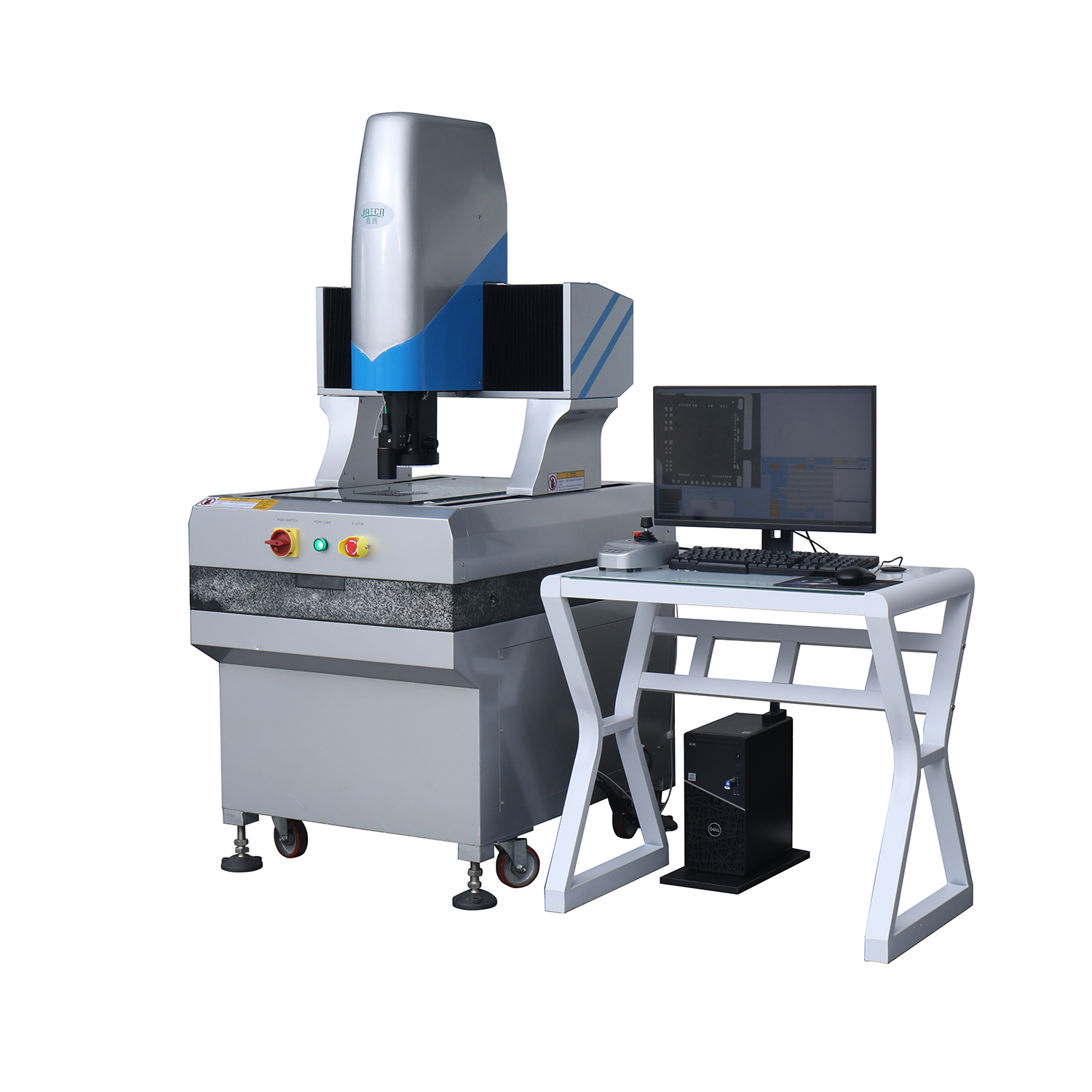

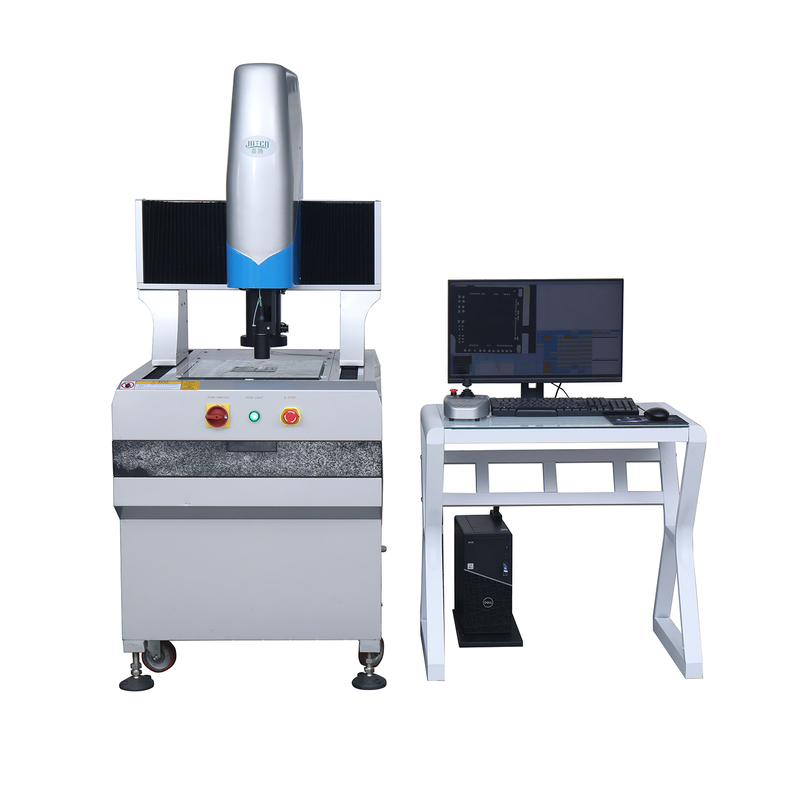

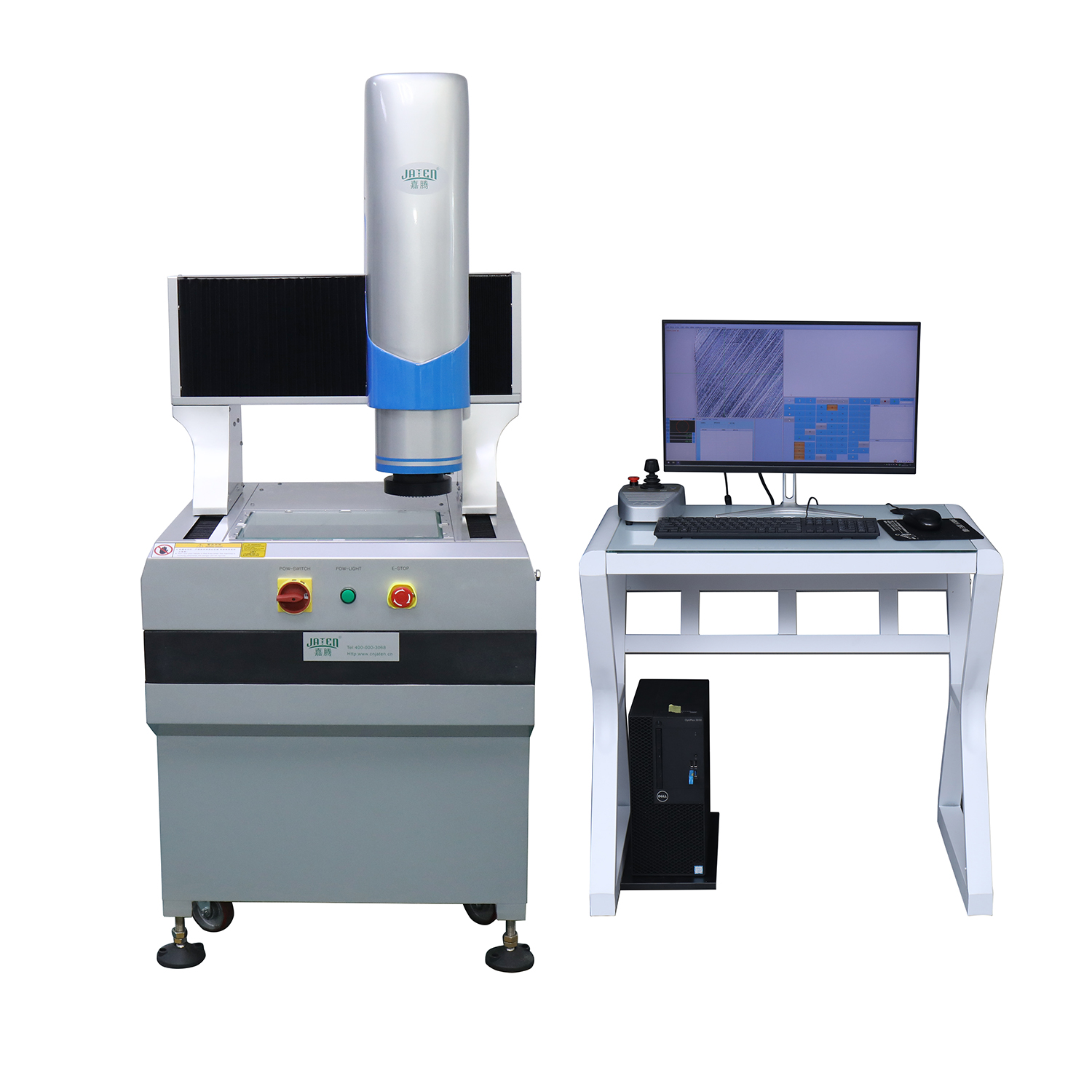

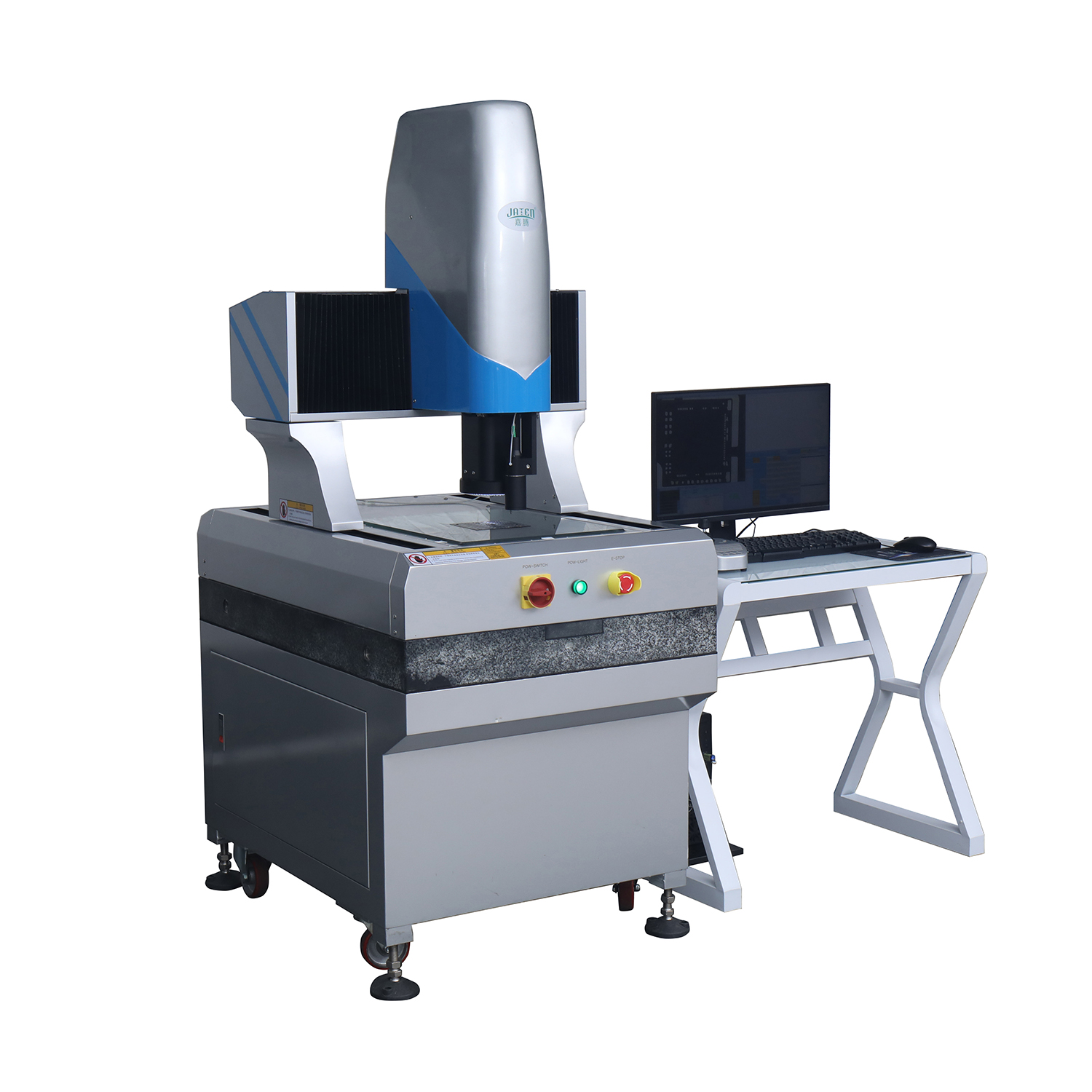

● High-precision marble base and beam ensure exceptional stability and rigidity.
● Small gantry-type moving structure – the worktable remains stationary, enabling higher speeds without compromising measurement accuracy.
● Precision-ground ball screw and high-precision linear guide, combined with Japan Panasonic servo motor and dual closed-loop motion control, ensure high-speed, precise positioning and smooth movement.
● High-resolution color network camera with our self-developed surface cold light source – consists of 48 independently controlled light groups driven by constant current sources for continuous adjustment, ensuring high-quality measurement images.
● Open-type American GSI precision optical scale with 0.5μm resolution for superior accuracy.
● Embedded motor control module, developed in-house, improves motor response speed and simplifies the interface between the instrument and the PC, with USB and S-terminal connections.
● Automatic continuous zoom lens eliminates the need for manual recalibration after zooming.
● Image navigation system allows for quick positioning of workpieces, significantly improving measurement efficiency.
● Equipped with our proprietary fully automatic measurement software, QuickMeasuring, enabling programmable automatic inspection for enhanced productivity.
