Product Description:

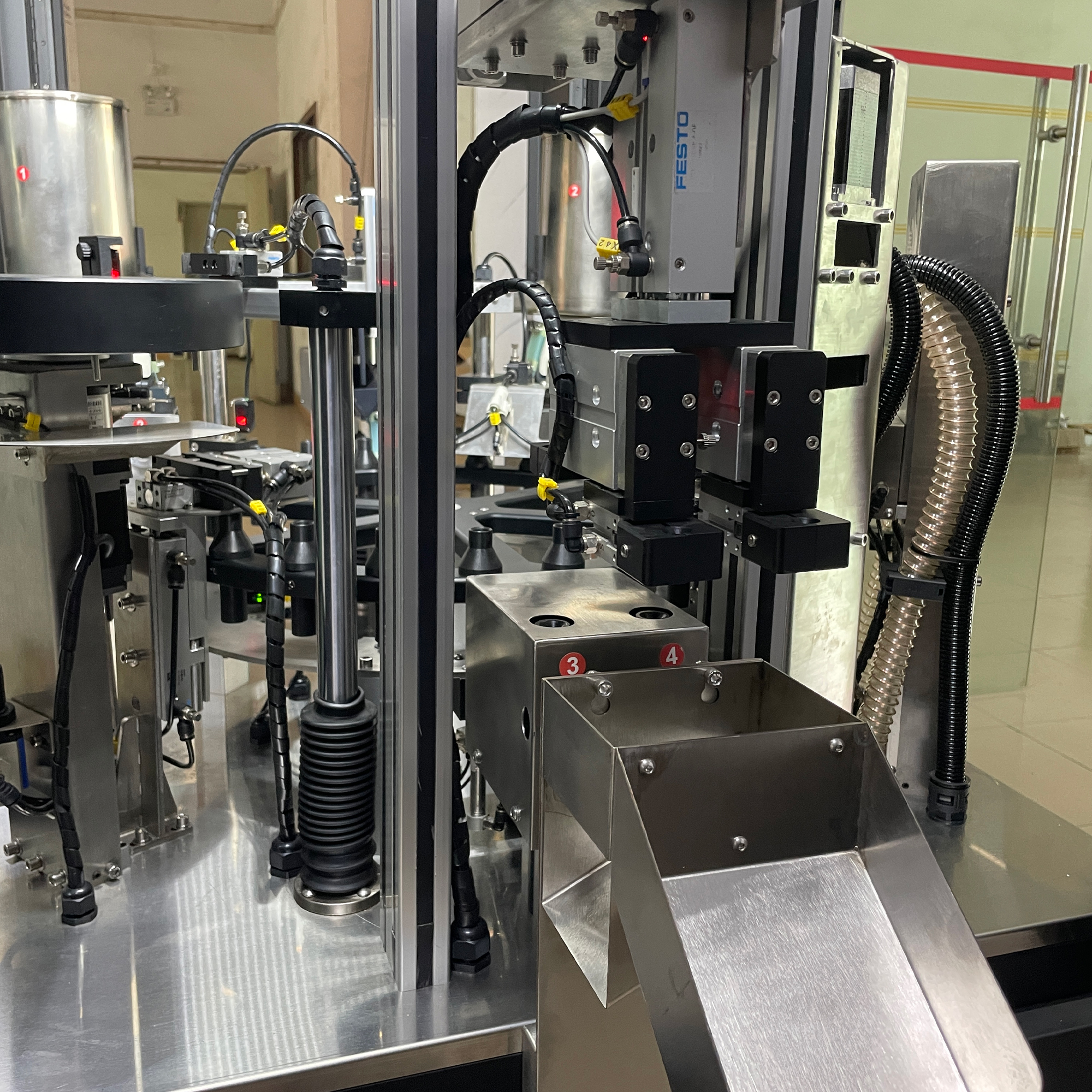

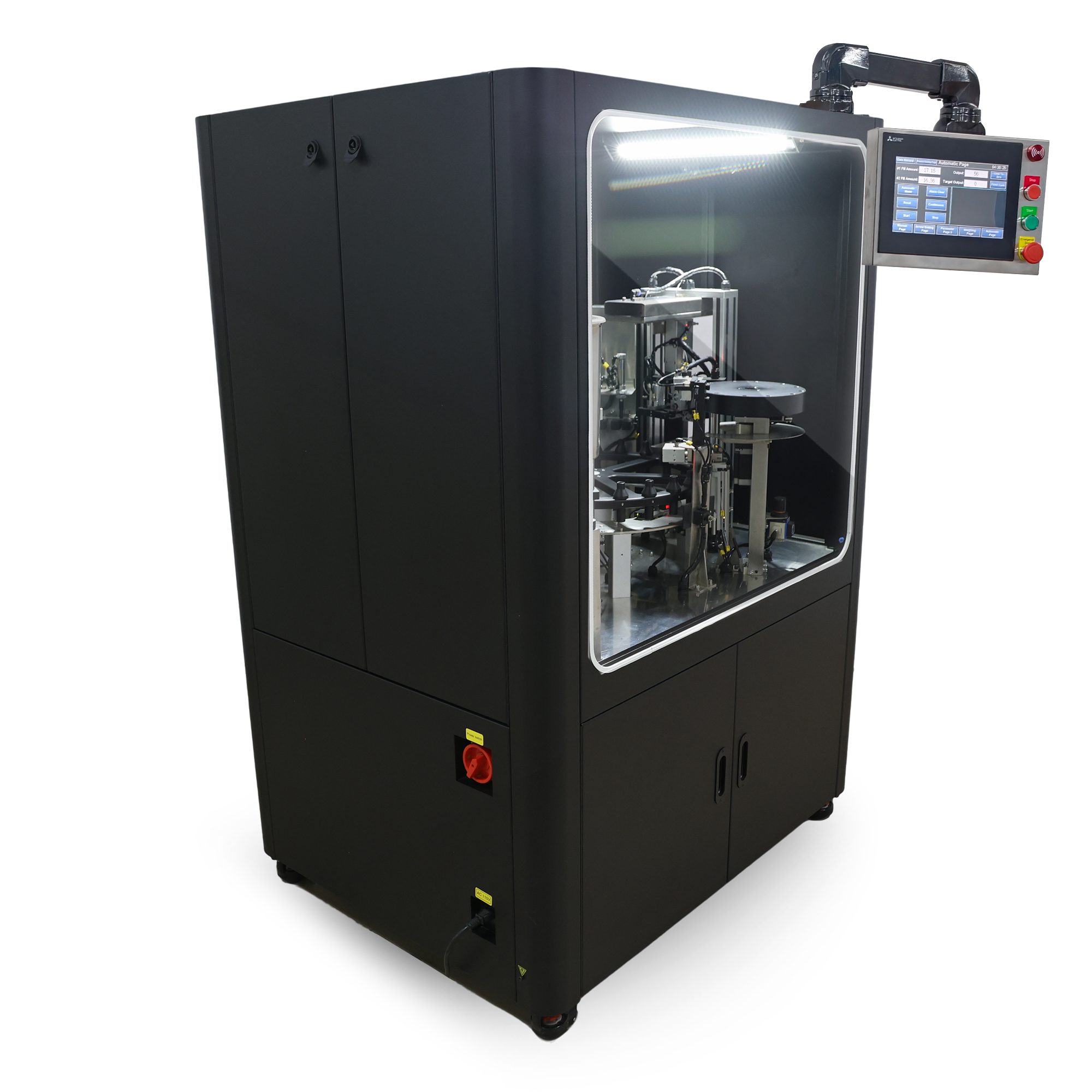

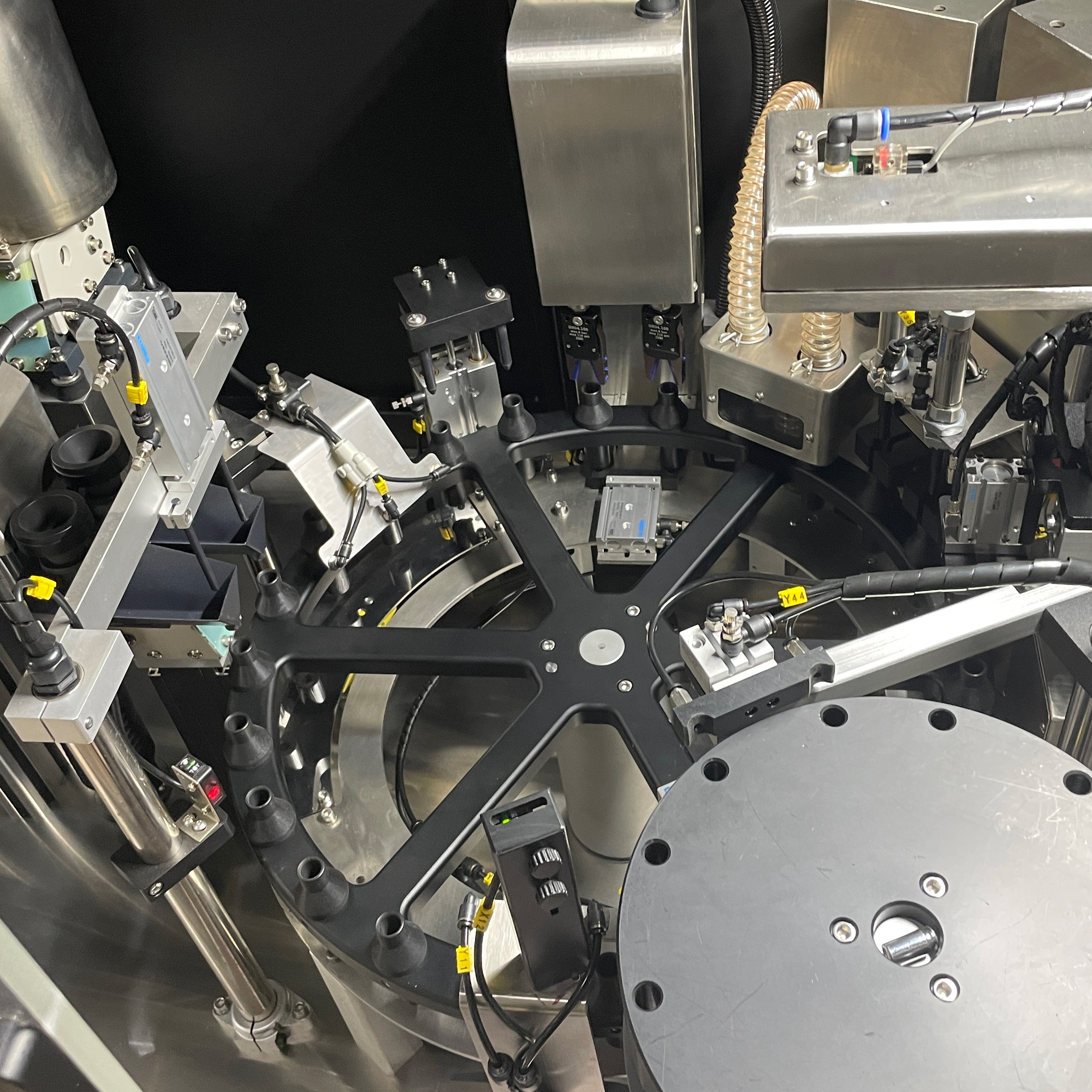

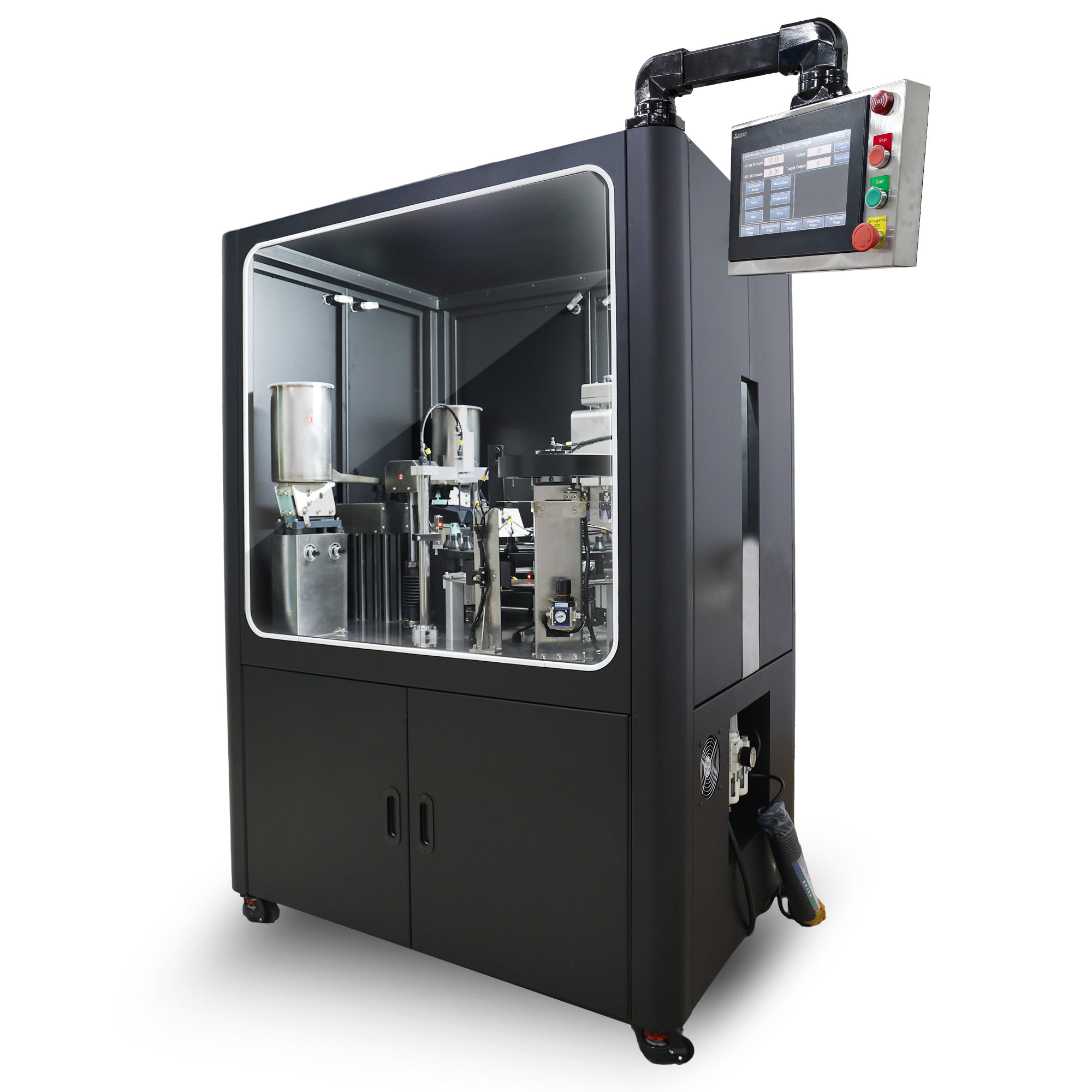

★ The dual-head cone filling machine uses a rotary disc mechanism. Paper cones are manually loaded (multiple cones can be stacked together).
★ Steps and functions of the dual-head filling machine: cone loading, shaping, material weighing and filling, tamping, twisting, cutting, pressing, and final product weight inspection. Conforming and non-conforming products are automatically separated.
★ Compatible Cone Sizes: Supports three lengths of paper cones – 84mm, 98mm, and 109mm – with one-touch switching.
★ Material Filling Settings: Target weight can be quickly set via the touchscreen.
★ Control System: Mitsubishi FX5U PLC, Mitsubishi 10-inch touchscreen HMI, Schneider electrical components.
★ Multi-Function Monitoring and Alarms Displayed on Touchscreen: product absence detection, multiple product monitoring, weight monitoring, cylinder abnormality, and low air pressure alarms.
★ Production Quantity Preset: Production quantity can be preset, and each product’s weight data can be stored and read via SD card.
Main Technical Specifications:
Input Voltage: AC110V/AC220V ±10%, 50/60Hz
Power Consumption: ≤600VA / ≤500VA
Input Air Pressure: 0.5–1.0 MPa
Operating Air Pressure: 0.5–0.6 MPa
Feeding Weight Range: 0.01g–3.0g
Accuracy: ±0.05g
Production Capacity: 20 pcs/min
Operating Temperature: 10–40°C
Operating Humidity: 20–90% RH
Machine Dimensions (L×W×H): 1500×900×1750 mm
Packing Box Dimensions (L×W×H): 1600×1000×1900 mm (suitable for air transport)
Machine Weight: Approx. 300 kg
