A Reliable Tool for Precision: Understanding the Profile Projector

In modern manufacturing, especially in fields that require high-precision component processing and quality control, accurate and efficient dimensional inspection is a constant challenge. As optical inspection technologies evolve, the profile projector continues to be widely used due to its non-contact measurement, magnified imaging, and intuitive operation.

This article explores the typical uses, key features, application cases, and reasons why the profile projector remains an indispensable tool in industrial measurement.

1. What Is a Profile Projector Used For?

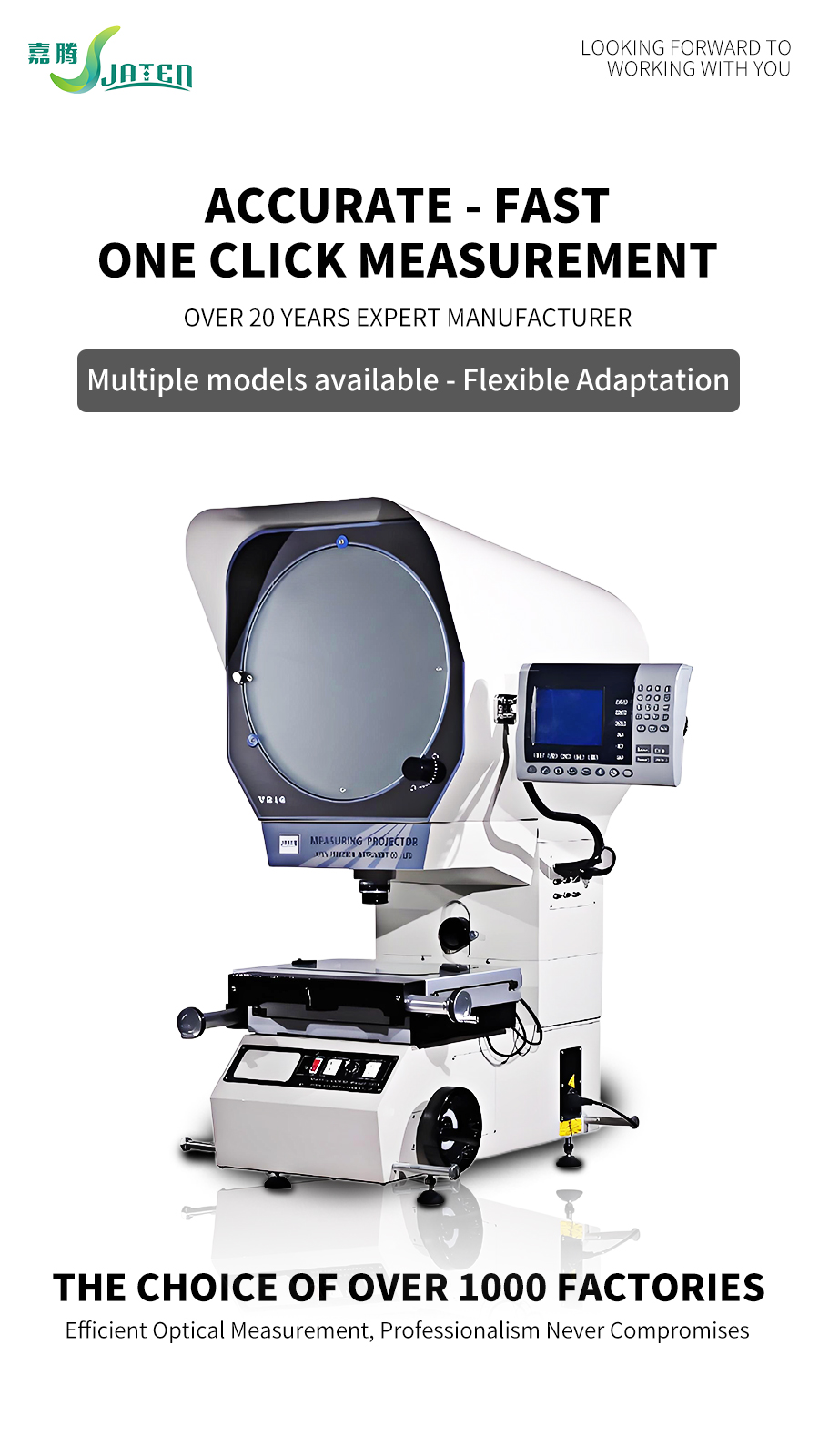

A profile projector, also known as an optical comparator, is a measurement device that magnifies the silhouette or contour of a part onto a projection screen. It allows for precise 2D measurements of shapes, lengths, angles, and contours, using a combination of grids, overlays, and digital readouts.

Typical measurement targets include:

Stamped and sheet metal parts

Screws, gears, cams

Mold cavities and cutting tools

Micro-electronic parts, pins, PCBs

Custom templates and complex contours

Profile projectors are ideal for parts that are small, fragile, or have intricate geometry not suited to contact-based tools like calipers or CMMs.

2. Main Features of the Profile Projector

Clear Imaging with Precise Magnification

Equipped with high-quality optics, the projector delivers sharp, high-contrast images. It offers real upright and same-direction magnified views of the workpiece, enabling easy observation of detail edges and contours.

High-Accuracy Measurement Platform

Using linear guides and precision glass scales, measurement error can be controlled within ±(3+L/200)μm. The X and Y axes offer stable readings and repeatability, suitable for batch inspection.

Dual Lighting System

The projector uses both transmitted (for contour) and reflected (for surface details) LED lighting. The brightness is adjustable and stable for various materials.

Rugged Structure, Long Service Life

With a stable frame and Z-axis guided by linear rails, the machine maintains accuracy over long-term use with minimal mechanical wear.

Expandable Features

Optional accessories such as a foot switch and micro printer allow for quick sampling and data output, making it suitable for digital workflows.

3. Real-World Applications

Case 1: Stamped Parts Inspection

A metal stamping factory uses the projector to inspect hole diameters, edge contours, and part outlines. Compared to caliper-based inspection, efficiency is tripled.

Case 2: Gear Profile Comparison

In gear manufacturing, engineers use 100× magnification to compare actual gear tooth contours with CAD overlay templates to identify shape deviations immediately.

4. Why Profile Projectors Still Matter

Despite the emergence of VMMs and coordinate measuring machines, the profile projector retains a firm position due to:

Visual intuition – see and judge parts with the naked eye.

Non-contact precision – no deformation or clamping required.

Versatility – works on dark, shiny, or transparent parts.

Cost-effectiveness – high precision with low investment.

Low maintenance – robust mechanics, easy to use and maintain.

For tasks involving repetitive, 2D part checking, or workshops with basic inspection needs, the profile projector is still the most efficient and economical choice.

5. Selection Tips

Item Considerations

Magnification Based on part size (e.g. 10×, 50×, 100×)

Projection Mode Vertical or horizontal, upright/inverted image

Stage Travel Depends on part dimensions

Lighting System Must support both transmitted and reflected lighting

Output Options Printer, RS232 interface, digital overlay

Ease of Use Foot switch, quick reset, screen overlay features

Conclusion

With reliable accuracy, non-contact operation, and user-friendly design, the profile projector remains a powerful tool in quality control for manufacturers, labs, and research institutions. Whether for complex tool inspection or high-volume production line checks, it consistently delivers dependable performance.
