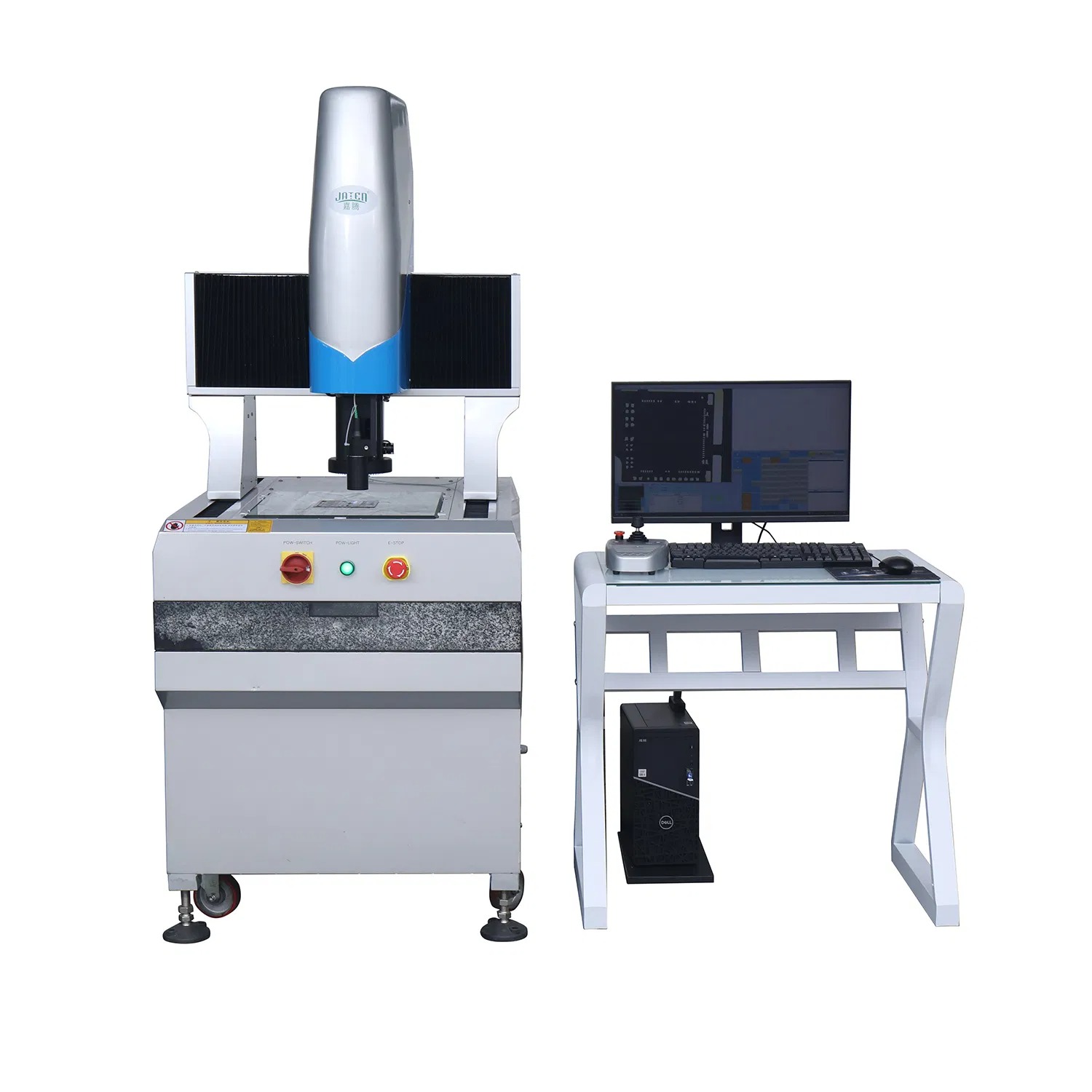

Video Measuring Machine: A Precision Tool to Capture the Micron World with Light

On the shop floors of modern factories, engineers are accustomed to using calipers, micrometers, profile projectors, or even coordinate measuring machines (CMMs) to check if a part meets dimensional requirements. However, as parts get smaller and tolerances tighter, traditional contact-based tools start falling short. Contact probes may scratch delicate materials, soft plastics may deform when clamped, and aligning tiny components is a challenge.

— This is where the Video Measuring Machine (VMM) steps in.

This is not just a fancy “camera.” It measures through seeing, not touching — and sometimes, it’s even more accurate than touch-based tools. Let’s explore how this technology combines optics and algorithms to reliably capture micron-level dimensions and become a key instrument in modern quality control.

Non-Contact Measurement: Ideal for Delicate Materials

One of the biggest advantages of VMMs is their non-contact nature. They don’t clamp the part like a caliper or touch the surface like a probe. Instead, they take high-resolution images and analyze those to extract dimensional data.

This ensures zero physical damage, which is crucial for:

Tiny components like electronic connectors or chip packages — a slight touch can misalign them.

Flexible materials like rubber seals, films, PET parts — easily deformed when pressed.

Polished surfaces such as optical lenses or metal mirrors — can be scratched with contact tools.

Example:

A medical plastics manufacturer used to inspect plastic tubes with profile projectors. The process was slow, and the tubes deformed during handling, affecting accuracy. After switching to a VMM, the team programmed lighting conditions and auto measurements, cutting inspection time per piece from 90 seconds to just 5 seconds — and quality consistency significantly improved.

Image Recognition + Coordinate Extraction: Measuring by “Seeing”

Now, here’s the big question: How can a picture tell us the size of a hole or the distance between two points?

That’s the second core strength of VMMs — image recognition and coordinate extraction.

Step 1: High-Resolution Imaging

Inside the VMM is an industrial-grade camera, often paired with a telecentric lens. This eliminates image distortion and parallax. Multiple lighting modes — surface light, contour light, coaxial illumination — enhance edge contrast and clarity.

Sharp images are the foundation. Just like the human eye, the software needs to clearly see the edges before it can measure them.

Step 2: Sub-pixel Edge Detection

Once the image is captured, the software applies sub-pixel edge detection algorithms. In simple terms:

One pixel might detect a 1-unit change.

Sub-pixel processing can resolve 0.1 or even 0.01 units.

It’s like using a ruler that can measure to the thousandth of a millimeter, thanks to smart interpolation and edge filtering. This makes micron-level accuracy achievable.

Step 3: Auto Coordinate Generation

Now the system automatically builds a coordinate system:

Finds reference edges and corners

Sets the origin automatically

Rotates the axis if needed (e.g., when the part is tilted)

This adaptive alignment is especially helpful for irregular parts or multi-position measurements. It reduces manual errors and boosts repeatability and speed.

Building 2D/3D Models: From Points to Full Geometry

With coordinates in place, the VMM identifies geometries like points, lines, circles, arcs, angles, and distances, and uses these to construct a 2D measurement model. Higher-end models can also use Z-axis sensors or lasers for simple 3D profiling.

Measurement Function Real-World Example

Point-to-point distance Screw hole spacing, connector pin pitch

Circle diameter Mold location holes

Line-to-line angle Stamped part bending angle

Arc length / Chamfer radius Phone frame edge profiles

Polygon profiles Plastic enclosures, metal brackets

Position / Coaxiality Precision mechanical part alignment

Smart Software & Automation: Fast and Intelligent

The software in a VMM isn’t just accurate — it’s also smart. Beyond basic measurement, it can:

Automatically compare images with CAD drawings

Judge pass/fail status based on tolerance settings

Batch run measurement programs with a single click

Generate reports in PDF or Excel formats

Track data for traceability and SPC analysis

Some systems even allow barcode scanning, automated workpiece loading, and integration with ERP/MES platforms — making them ideal for inline inspection.

Conclusion: Optical Precision Made Simple

The Video Measuring Machine may look like a small optical device, but it integrates lenses, vision algorithms, precision stages, control systems, and smart software — all in one. It solves the common manufacturing problems of “can’t measure, can’t measure fast, can’t measure without damage.”

In today’s era of miniaturized components and tight tolerances, whether you work with electronics, injection molds, automotive parts, or medical plastics, a VMM can be your essential partner in quality assurance and cost control.

And looking ahead, VMMs are more than just measurement tools. They’re becoming the “eyes” of intelligent manufacturing systems, bridging inspection, data, and production — and empowering the next leap in digital manufacturing.
