Toolmaker's Microscope: A Professional Solution for Precision Measurement and Microscopic Observation

1. What is a Toolmaker's Microscope?

A toolmaker's microscope is a high-precision, non-contact measuring instrument that integrates optical systems, precision mechanical components, digital imaging, and measurement software. It is primarily used for two-dimensional (2D) measurement and microscopic observation of small workpieces, with auxiliary capabilities for 3D measurements. Widely used across electronics, molds, springs, automotive parts, and PCB processing industries, it is essential in quality control, R&D, and metrology labs.

2. Key Features and Advantages

✅ High Precision and Efficiency

Capable of micron-level measurement, ideal for inspecting microstructures and complex geometries.

✅ Integrated Functions

Supports 2D measurement (length, angle, diameter, pitch) and shape comparison using standard reticles.

✅ Non-Contact Measurement

Prevents deformation during measurement, especially suited for soft materials like rubber, plastic, and thin metal components.

✅ Dual Functionality

Acts as both a microscope and a measuring device, enabling detailed surface observation and dimensional analysis.

3. Typical Applications

Industry Applications

Electronics IC package dimensions, pin pitch, solder pad alignment

Mold & Tooling Cavity dimensions, chamfers, micro-features

Cutting Tools Edge geometry, thread pitch, rake angles

Automotive Parts Oil seals, springs, camera module components

PCB & Connectors Microscopic inspection, circuit spacing verification

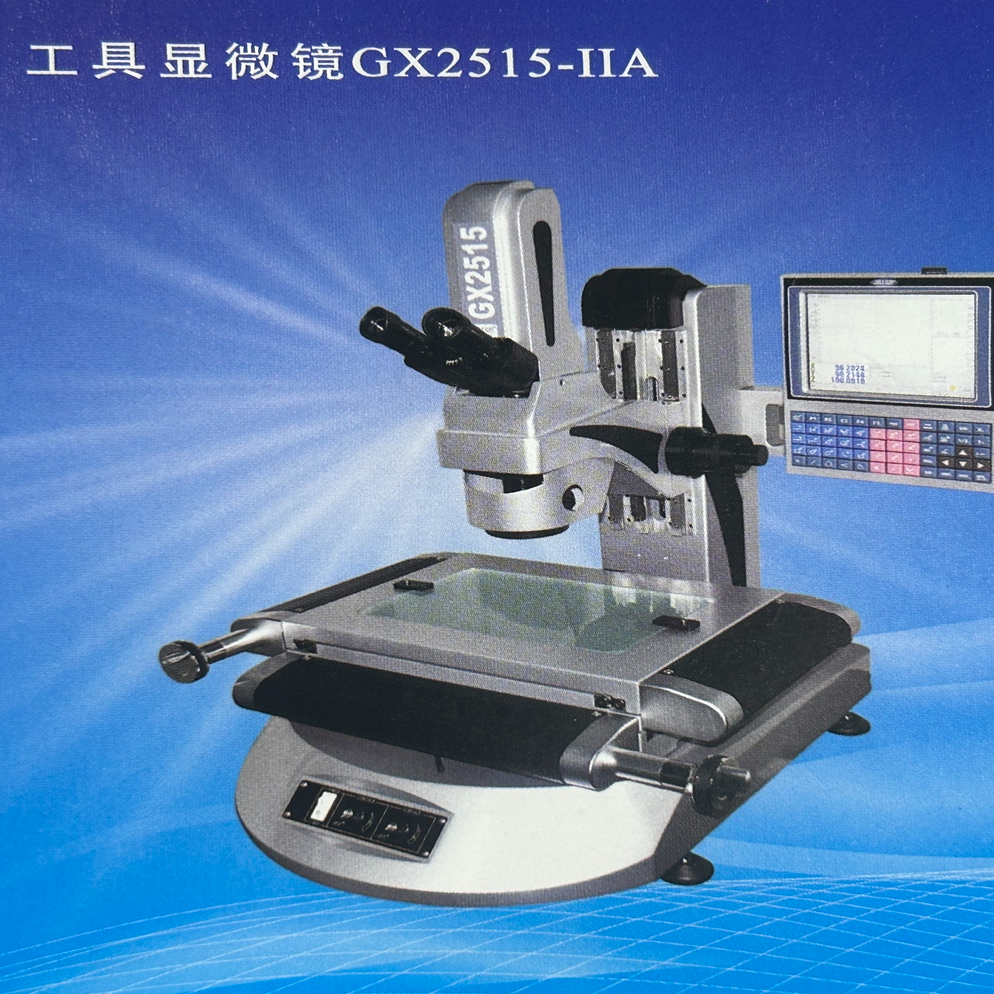

4. Product Highlight: JATEN GX2515-II A Toolmaker’s Microscope

The GX2515-II A, developed by JATEN, is a multifunctional video toolmaker's microscope designed for high-efficiency measurement and observation.

Key Specifications:

Travel range: 250mm (X) × 150mm (Y)

Imaging system: High-resolution digital color CCD with C-Mount interface

Software: QuickMeasuring for automatic edge detection and click-based measurement

Lighting: Adjustable LED ring (top) and transmitted (bottom) illumination

Data Output: Supports USB, VGA, data/image export for analysis and reporting

Use Case Example:

Inspecting a cutting tool's edge geometry – simply click the edge in the image window to obtain dimensions such as diameter, angle, or pitch. No programming required.

5. Equipment Selection Tips

Criteria Considerations

Workpiece size Match stage travel to part size

Measurement type 2D only or need auxiliary 3D comparison

Software capability Need for automation, data export

Output format Excel, PDF, image saving for traceability

6. Future Development Trends

AI-based edge recognition for automatic measurement

Integration with 3D sensors for enhanced Z-axis inspection

Data connectivity for MES/QMS integration

Compact and modular designs for workshop use

7. Conclusion

Toolmaker's microscopes are indispensable instruments in modern precision industries, combining the power of microscopy and high-accuracy measurement in one unit. Whether used in quality control labs or on the production floor, they support efficient, reliable inspection of critical components.

For tailored measurement solutions or to learn more about JATEN models like GX2515-II A, feel free to contact us. We are here to support your quality and productivity goals.
