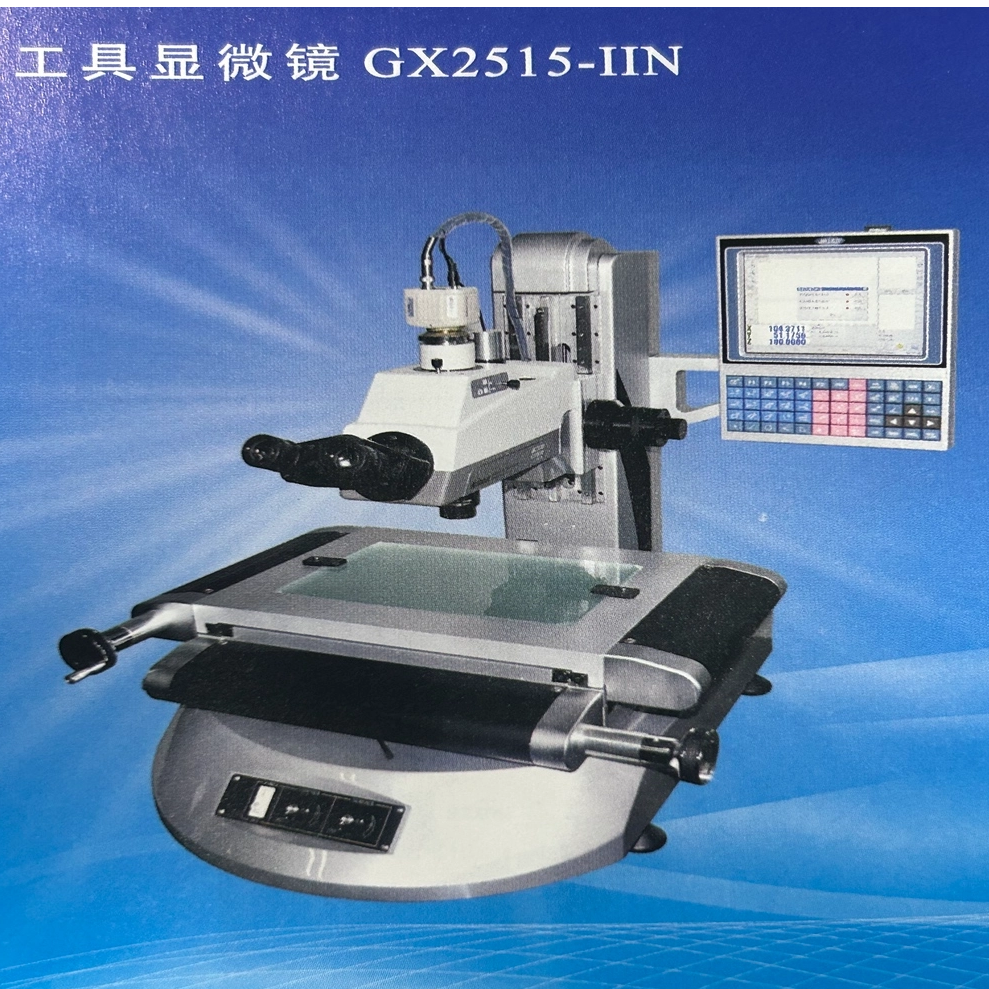

Tool Microscope: A Reliable Assistant for Microscopic Precision Measurement

In the field of precision manufacturing, the ability to efficiently measure micro-sized components and inspect their surface quality at the micron level is crucial for ensuring product quality. The tool microscope, an integrated system combining optics, mechanics, electronics, and software, has become a widely used measurement tool in industries such as electronics, molds, cutting tools, automotive components, and PCB processing. It's a common and essential device in both laboratories and production lines.

1. What Is a Tool Microscope?

Simply put, a tool microscope is a device designed to “see clearly and measure accurately.” It magnifies small parts for visual inspection and works with measurement software to perform precise 2D dimensional measurements.

Key measurement capabilities include:

Dimensional measurement: inner/outer diameters, lengths, widths, hole spacing, etc.

Thread inspection: pitch, thread angle, outer diameter

Contour magnification and shape comparison

Surface inspection and roughness observation (non-contact)

Simple Z-axis-assisted 3D measurements

Modern tool microscopes equipped with imaging software can extract edges, mark dimensions, and generate inspection reports, improving overall efficiency and reducing operator workload.

2. Wide Range of Applications

Tool microscopes are widely used across multiple industries:

Electronic components: for measuring crystal resonators, inductor leads, solder pad dimensions

Precision molds: to inspect cavity profiles and confirm key dimensions

Cutting tools: to check edge radius, spiral angles, tooth forms

Rubber and plastic parts: precise measurement of oil seals, O-rings, and other non-metallic components

Automotive and camera components: such as sensor housings and lens thread interfaces

PCB manufacturing: to verify drilling positions, trace spacing, and solder pad alignment

For example, when measuring micro springs, traditional calipers often fail to provide accurate readings for coil pitch and free height. A tool microscope, combined with image measurement software, significantly improves accuracy and efficiency — often by 3 to 5 times.

3. Why Choose a Tool Microscope?

1. Sharp Observation with Accurate Measurement

Using high-quality objective lenses and professional light sources (halogen or LED), even dark, non-reflective materials like rubber or carbide appear with clear contours. Combined with a digital readout or image processing software, measurements are precise and easy to interpret.

2. Non-Contact Capability

Ideal for parts that are delicate, small, or sensitive to pressure — such as FPC boards, silicon wafers, and micro springs — non-contact measurement ensures consistent and damage-free inspections.

3. Easy Operation, Practical Functions

With a compact design and intuitive software interface, the tool microscope is easy to use, even for beginners. Many models offer on-screen measurement functions that allow for simultaneous viewing and measuring.

4. Conclusion: A Dependable Tool for Quality Control

Whether for R&D sample inspections or batch production quality control, the tool microscope is a highly practical and cost-effective measurement solution. It’s accurate, easy to operate, and versatile — an excellent fit for any precision component inspection task.

If you're looking for a reliable, high-performance measurement tool for your lab or production floor, the tool microscope is definitely worth considering. It may just be the “right-hand assistant” your team has been missing.
